Proper installation of a Komatsu engine assembly is more than a mechanical task—it’s a critical operation that determines the long-term reliability, performance, and safety of the entire excavator. At Shandong Qianyu Construction Machinery Co., LTD., we often receive inquiries from equipment technicians and purchasing agents looking to understand what it takes to install a new engine correctly. This comprehensive guide outlines every important step, from pre-installation checks to post-startup testing, ensuring that your Komatsu machine returns to work with confidence and power.
Preparing for Installation
Tools and workspace setup
A successful engine installation begins with the right preparation. Having a clean, well-organized workspace reduces errors and prevents contamination of sensitive components. Make sure the following are available:
Crane or hoist system (min. 3-ton capacity)
Torque wrench with appropriate socket range
Clean rags and engine-safe degreaser
Thread locker and gasket sealant
Engine alignment tools or dowel pins
Fire extinguisher and spill control kits
The installation site should be level and free of obstructions. Maintain proper ventilation if working indoors, and ensure good lighting over the work area, especially near mount points and electrical harnesses.
Pre-installation inspection checklist
Before unpacking the new Komatsu engine assembly, conduct a visual and functional inspection:
Check for any signs of damage during shipping

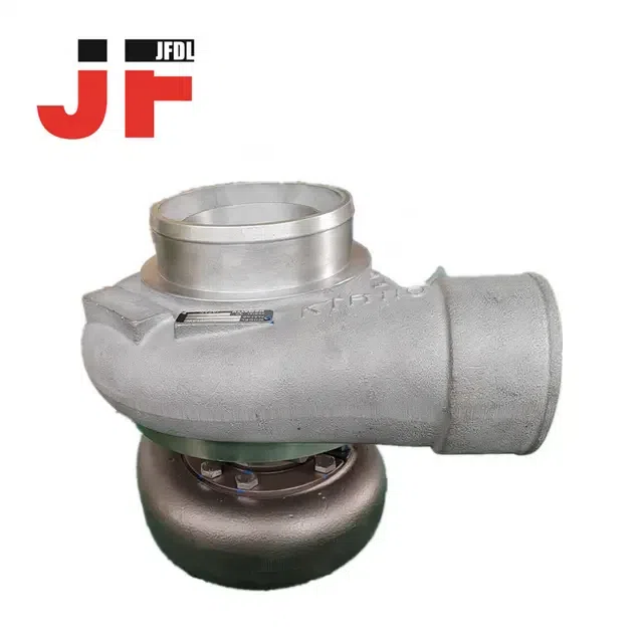

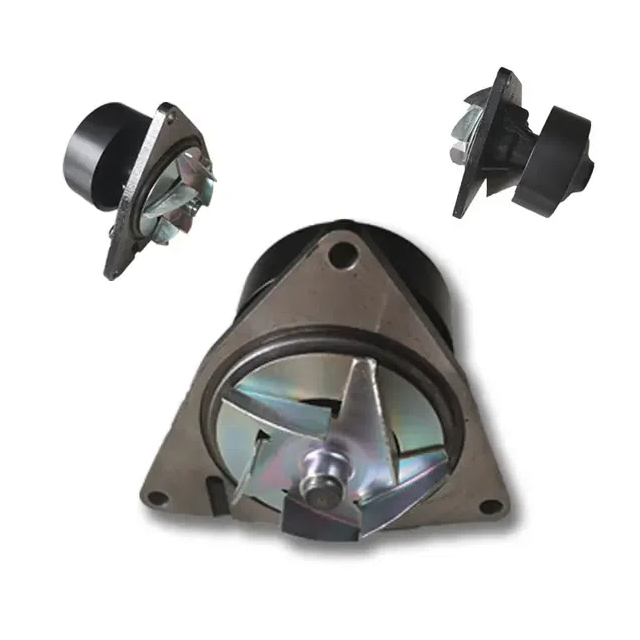

Confirm the assembly includes key components: flywheel, injection pump, turbocharger, water pump, etc.
Ensure there’s no fluid leakage from ports or seals
Verify that all caps and covers are intact
Cross-check the part number on the engine plate with your purchase invoice. Mismatched components can lead to serious compatibility issues.
Matching engine to excavator model
Komatsu engine assemblies are typically designed for specific models such as the PC600-8, PC1250-7, or PC1250-8. Even within the same frame size, ECU protocols, mount points, and fuel interfaces may differ.
Review the following to confirm a correct match:
Mounting point dimensions
Flywheel housing and shaft alignment
ECU harness compatibility (if equipped)
Exhaust routing direction
Fuel pump type and connection orientation
It’s best to refer to your original equipment service manual or consult directly with Shandong Qianyu’s technical support team for verification.
Step-by-Step Engine Assembly Installation
Removing old engine (disassembly tips)
Begin by shutting down the excavator completely, disconnecting the battery, and draining all fluids—engine oil, coolant, and hydraulic assist lines.
Follow these steps:
Remove engine covers and protective panels
Label and disconnect all sensor and ECU wiring
Detach exhaust piping and turbo components
Disconnect fuel lines, using absorbent material to control spills
Remove all engine mount bolts using appropriate torque breaker tools
Use the crane or hoist to lift the old engine straight up from the frame, avoiding side shifts that may damage the mounts
Use zip bags or labeled containers to store removed bolts, sensors, and connectors—you’ll need many of them during reassembly.
Positioning the new engine properly
Carefully lower the new engine assembly into the engine bay using the crane. Use alignment dowels or guides to ensure the flywheel housing and mounts align perfectly with the excavator’s frame.
Avoid tilting or letting the engine rest on unsupported areas. Use a spotter to guide final positioning and prevent pinched wires or bent hoses.
Once aligned, lower the engine fully into place, ensuring all mounts sit flush.
Securing mounts and bolt tightening patterns
Use a torque wrench to secure the engine mount bolts in a crisscross pattern, tightening gradually in two stages:
Initial hand-tight torque (25-30%)
Final full torque based on Komatsu’s engine specifications
Apply thread locker on all main mount bolts to prevent vibration-induced loosening.
Ensure all mounting brackets and supports are reattached securely to eliminate any movement during startup.
Key Electrical and Fuel System Connections
Fuel line integration
Fuel lines must be reconnected using clean, dry fittings. Avoid using old hoses that show cracks or soft spots. Install new fuel filters to prevent contaminants from entering the injection system during initial operation.
Bleed the fuel lines before ignition by using the manual primer pump, ensuring fuel pressure reaches all injector ports.
ECU & sensor calibration (if applicable)
For electronically controlled engines, reconnect the ECU harness to the corresponding port and secure all sensors. Calibrate the following:
Engine speed sensor
Coolant temperature sensor
Oil pressure sensor
Intake manifold pressure sensor
Make sure no codes appear on the diagnostic panel during system power-up. Most modern Komatsu machines will flash errors or lock out starting if communication with the engine ECU fails.
Battery and starter motor connection
Reinstall the starter motor connections and reattach the battery terminals. Check for correct polarity and ensure ground wires are secured to clean, paint-free surfaces.
It’s advisable to test the starter relay and ignition switch prior to engine cranking to prevent unnecessary current draw.
Post-Installation Testing
Coolant & oil levels check
Fill the engine with the recommended OEM-grade engine oil and coolant. Use only fluids that match Komatsu specifications for viscosity and thermal rating. Bleed the coolant system to remove air pockets that can cause overheating.
Check for any signs of leakage around the gaskets and seals once fluids have stabilized.
Initial ignition and idle testing
Before starting the engine, perform a manual crank test by turning the crankshaft two full rotations. This ensures internal components move freely and confirms no interference exists.
Once verified:
Start the engine and let it idle for 5–10 minutes
Monitor for unusual vibrations, noise, or error codes
Observe oil pressure, coolant temperature, and idle RPM stability
Do not rev the engine during this stage. Allow all systems to reach operating temperature before proceeding.
Load test and performance monitoring
Finally, perform a light-duty operational test using the excavator’s hydraulic controls. Slowly engage the boom, swing, and bucket functions to assess power delivery.
Monitor performance under load by:
Checking for delayed throttle response
Watching for excessive smoke
Listening for knocking or vibration
If no anomalies are found, the engine is now cleared for full-duty operation.
Conclusion
Correct installation of a Komatsu engine assembly is essential to ensure machine uptime, operator safety, and return on investment. Every step—from matching components to performing post-installation tests—plays a role in maximizing engine life and minimizing breakdown risks. At Shandong Qianyu Construction Machinery Co., LTD., we not only supply genuine engine assemblies but also offer full technical support to help clients install and operate their equipment with total peace of mind.
Contact us to get expert assistance with your engine project and keep your Komatsu equipment working at its highest potential.
