3-Ton Compact Loader: Your Go-To for Narrow Spaces & Light-to-Medium Tasks
Engineered for agility without compromising performance, the 3-ton compact loader is designed to tackle material handling, grading, and light excavation in spaces where larger loaders can’t fit. Ideal for municipal work, small construction sites, and family farms, it balances maneuverability, efficiency, and low operational costs—making it a versatile tool for daily operations.
Core Specifications: Precision Tailored for Small-Scale Needs
| Parameter | Details |
| Rated Load | 3,000 kg (6,614 lbs) – optimal for light-to-medium materials (gravel, sand, bricks) |
| Bucket Capacity | 1.2–1.5 m³ (1.57–1.96 cu yd) – standard general-purpose bucket; optional narrow bucket (0.9 m³) for tight spaces |
| Engine Power | Dual options: - Diesel: 70–90 HP (52–67 kW) Tier 4 Final turbocharged engine (fuel consumption: 6–8 L/h) - Electric: 50 kW lithium-ion battery (8–10 hours continuous runtime; 2.5-hour fast charge) |
| Lift Performance | Max lift height: 3.2 m (10.5 ft); lift speed: 0.8 m/s (2.6 ft/s) – supports stacking materials 2 layers high |
| Maneuverability | Wheel type (4WD standard) – max travel speed: 30 km/h (18.6 mph); turning radius: 3.8 m (12.5 ft) |

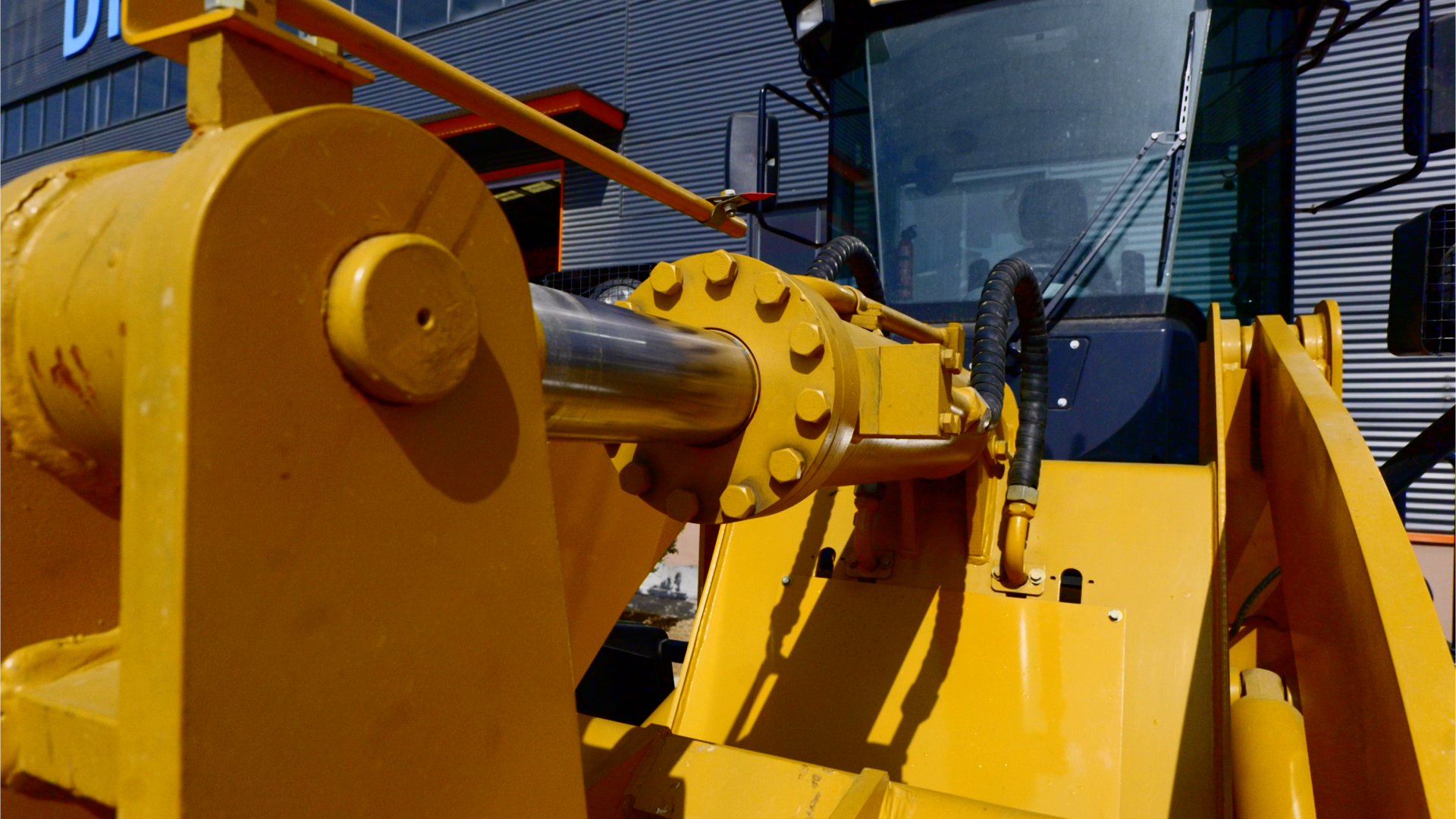

| Hydraulic System | Load-sensing hydraulic system (3,000 psi working pressure) – enables smooth simultaneous bucket lifting/tilting |
| Weight & Dimensions | Operating weight: 5,800–6,200 kg (12,787–13,669 lbs); width: 2.1 m (6.9 ft) – fits through standard narrow alleys (2.2 m+ width) |

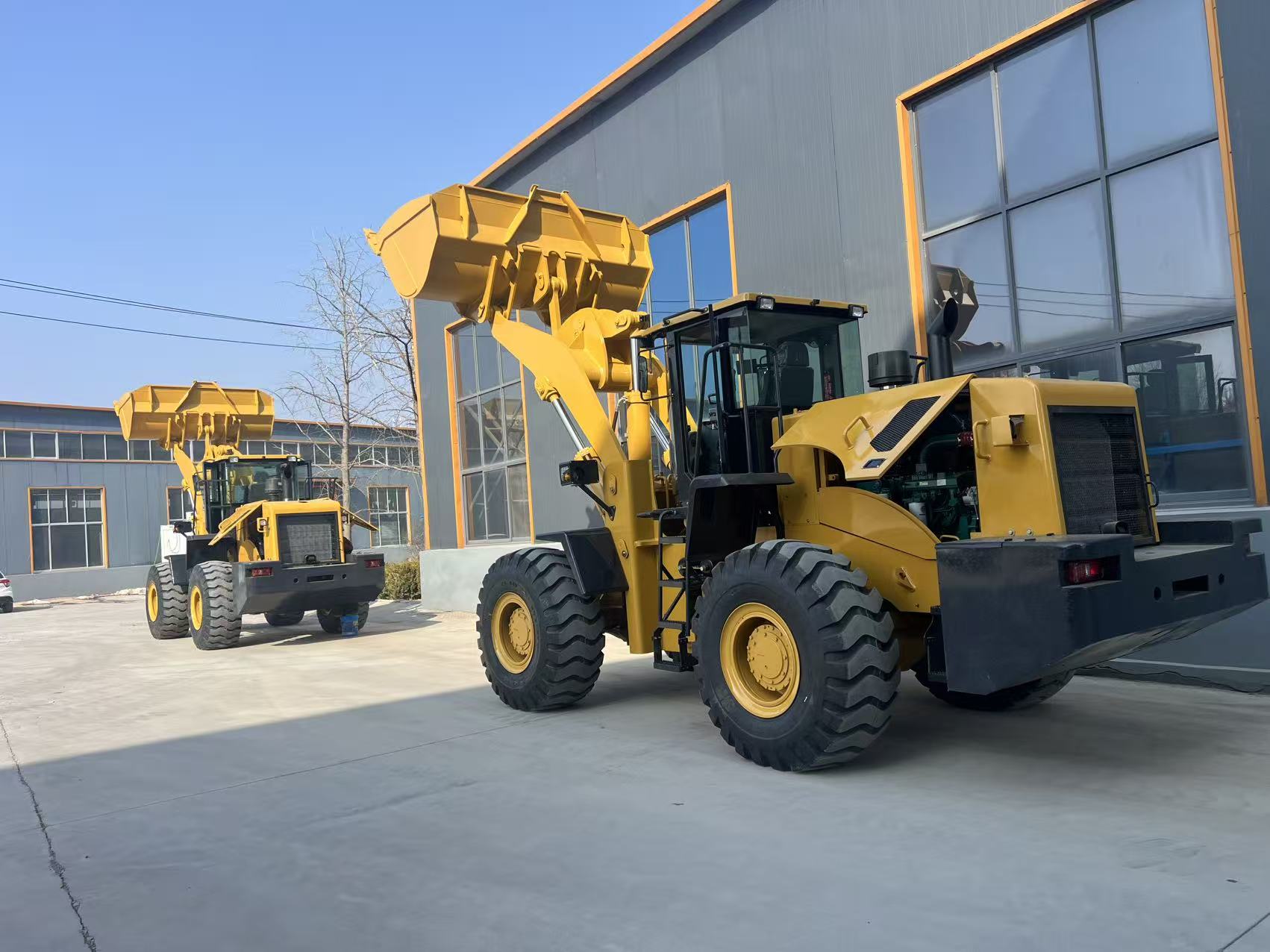

Image 1 ALT: "3-Ton Compact Loader with standard bucket, showing narrow body design for tight spaces"
Key Features: Designed for Agility & Usability
1. Narrow-Body Agility for Tight Environments
With a width of just 2.1 m, this loader navigates urban alleys, indoor warehouses, and small farm lanes effortlessly—no need to widen paths or compromise on workspace. The optional narrow bucket (0.9 m³) further enhances access to confined areas, such as between residential buildings or inside factory workshops.
2. Dual-Power Flexibility for All Scenarios
Diesel Model: Ideal for outdoor, long-duration tasks (e.g., farm hay handling, construction site material transport) – high torque for heavy loads and all-terrain traction.
Electric Model: Zero emissions, low noise (≤65 dB), and low maintenance – perfect for indoor use (e.g., warehouse pallet stacking) or urban municipal work (e.g., nighttime road repair) to avoid disturbing residents.
3. Operator-Centric Comfort & Safety

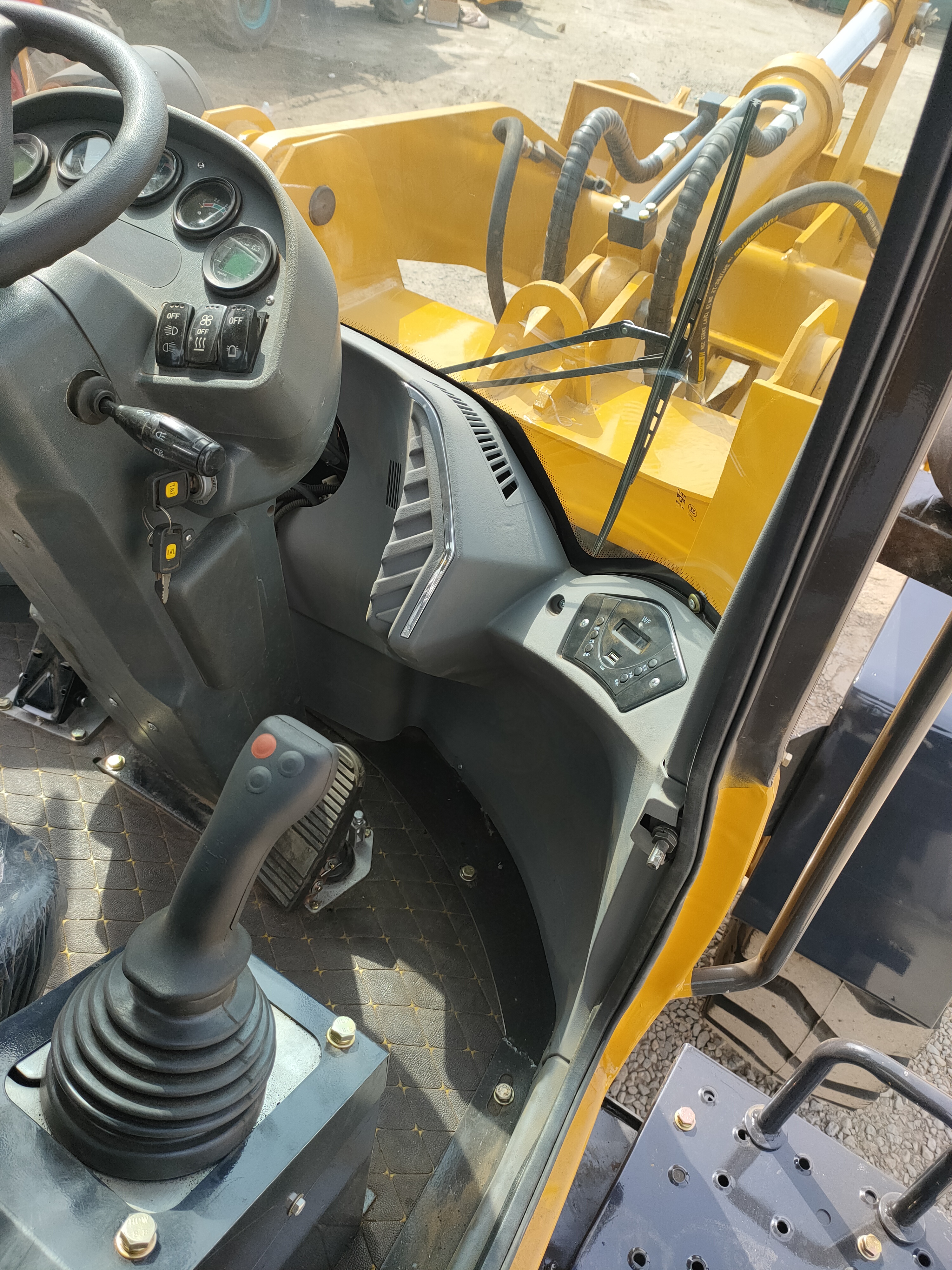

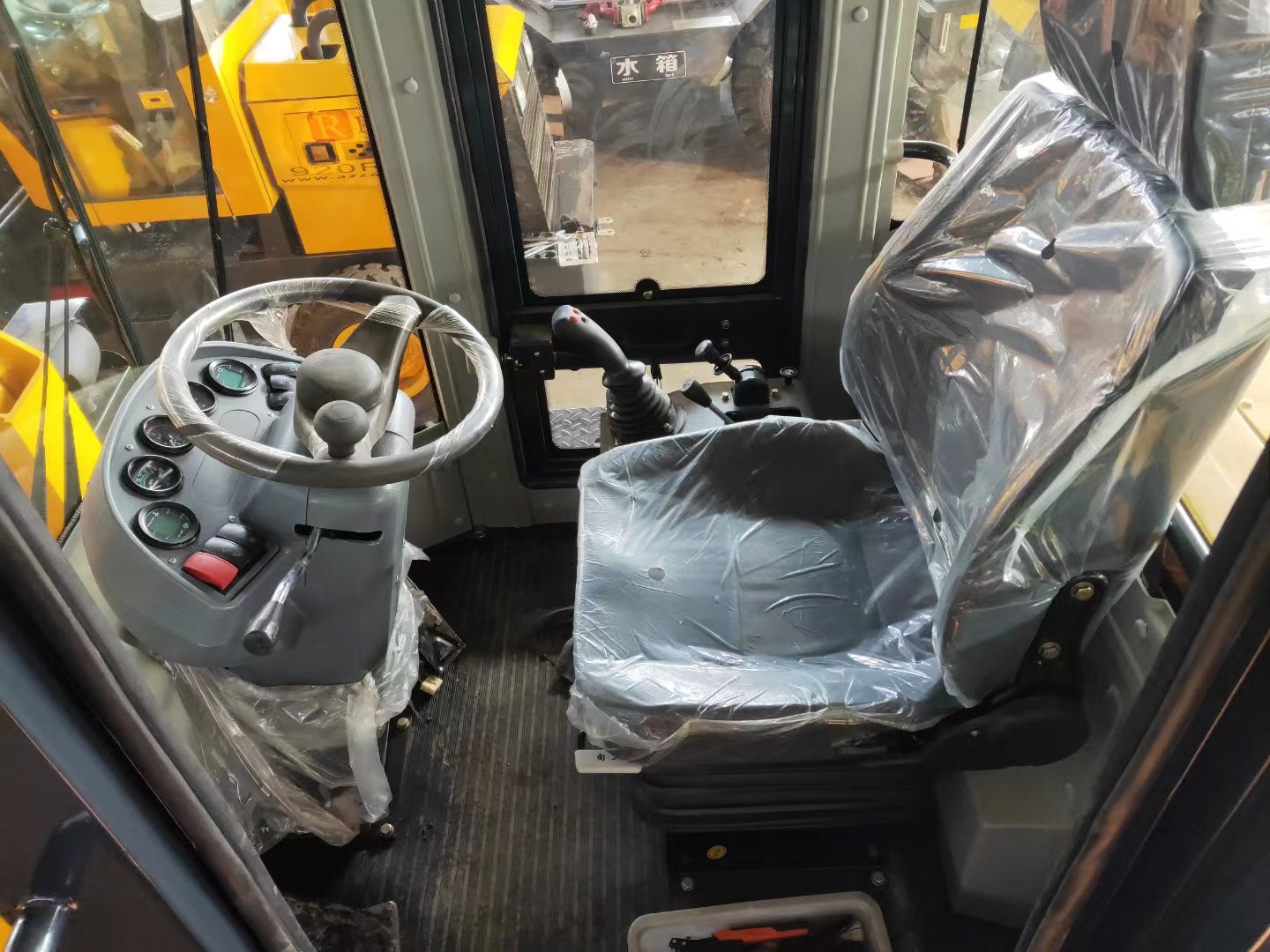

Ergonomic Cabin: ROPS/FOPS-certified (roll-over/falling-object protection), sound-insulated (≤70 dB), and equipped with an adjustable suspension seat (reduces fatigue during 8-hour shifts). A 7-inch digital display shows real-time data (fuel/battery level, hydraulic pressure, maintenance alerts).
4. Multi-Attachment Versatility (Tool-Free Switching)
The quick-coupler system lets you swap attachments in 2 minutes without tools, turning one machine into a multi-task solution:
Image 2 ALT: "3-Ton Compact Loader using a grapple attachment to lift straw bales on a family farm"
Ideal Application Scenarios
1. Municipal & Urban Maintenance
Tasks: Road repair (loading asphalt, patching potholes), small-scale snow removal (with 1.8 m-wide snow blade), sidewalk renovation (carrying concrete slabs), and park landscaping (moving soil, planting trees).
2. Small Construction & Renovation
Tasks: Home extension projects (loading bricks, cement, and excavated soil), garage construction (grading foundation), and indoor renovation (electric model: moving drywall, flooring materials without fumes).
3. Family Farms & Small Orchards
Tasks: Transporting livestock feed, grain, and hay bales; clearing orchard debris (fallen branches, leaves); digging small irrigation ditches (with auger attachment); and leveling farm paths.
Why Choose the 3-Ton Compact Loader?
1. Low Total Cost of Ownership
2. Reliable Support & Warranty
Warranty: 2-year/2,000-hour warranty on major components (engine, hydraulics, battery); 1-year warranty on attachments.
3. Customization Options
Ready to simplify your small-scale material handling? Contact our sales team for a free demo, detailed spec sheet, or customized quote—we’ll help you get the most out of your 3-ton loader!
